set G4INSTALL=C:\g4\geant4_7_0 set CLHEP_BASE_DIR=C:\Clhep\clhep-1.9.1.2-win32-vc71
Since 2005.4.22Ｇｅａｎｔ４環境構築のまとめ。
C:…」とする。
理由はコンパイルやリンクをする際に参照をする主体によってうまくいかないことがあるから。
Cygwinの正式な表記法は『/cygdrive/c』であるが、
これと「C:」は等価に扱われるようだ。C:/g4/”以下に、
CLHEPは“C:/Clhep/”以下に設置することにした。
$ mkdir -p C:/g4 $ unzip geant4_7_0.zip -d C:/g4 $ unzip geant4_7_0_p01.zip $ cd geant4_7_0_p01 $ cp -fRp * C:/g4/geant4_7_0/ $ cd .. $ rm -rf geant4_7_0_p01
G4INSTALL」直下に設置；
$ unzip g4_7_0_p01_include.zip -d C:/g4/geant4_7_0
$ mkdir -p C:/Clhep/clhep-1.9.1.2-win32-vc71 $ tar zxvf clhep-1.9.1.2-win32-vc71.tgz -C C:/Clhep/clhep-1.9.1.2-win32-vc71
$ unzip g4_7_0_projects.zip -d C:/g4/geant4_7_0

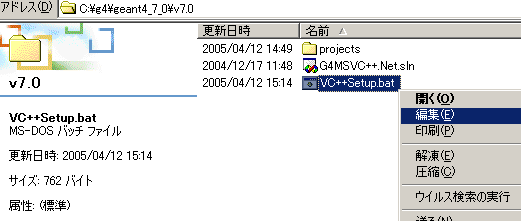

set G4INSTALL=C:\g4\geant4_7_0 set CLHEP_BASE_DIR=C:\Clhep\clhep-1.9.1.2-win32-vc71

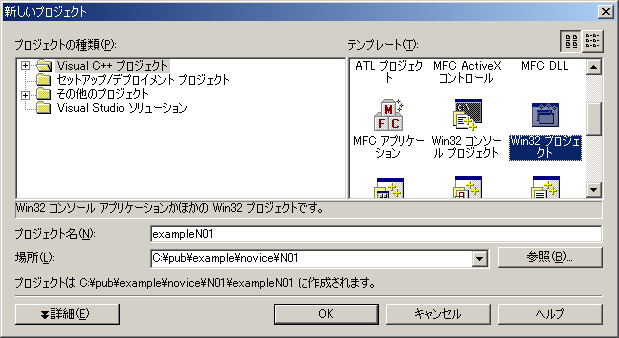

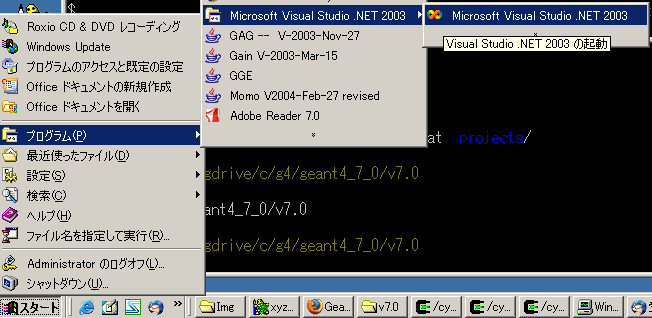

『Getting started with MSVC++.Net』
のページに書かれているようにやればよい。
と、独自に試行錯誤した結果を以下にまとめた。
（結果的に、後にその存在に気が付いた
『Building your own Geant4 project using MSVC++ .NET 2003』
のページに書かれている内容とほぼ同じになった。
多少異なっている箇所があるが、それに関しての考察は今後の課題とする。）

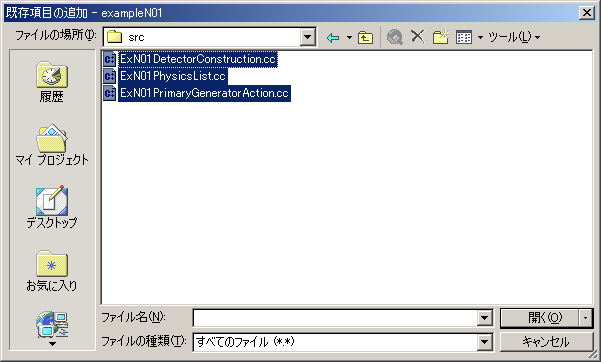

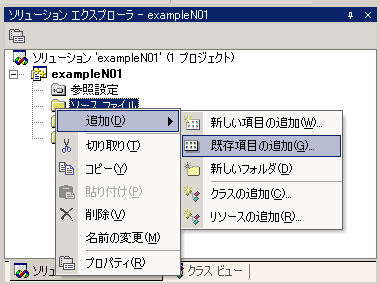

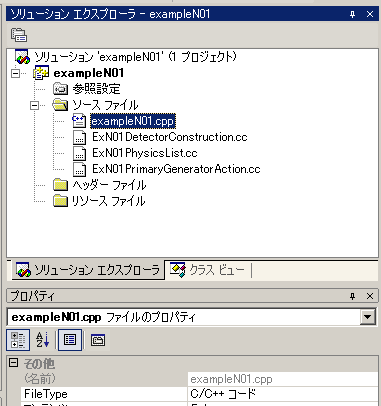

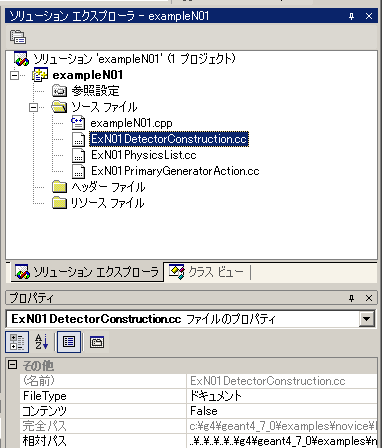

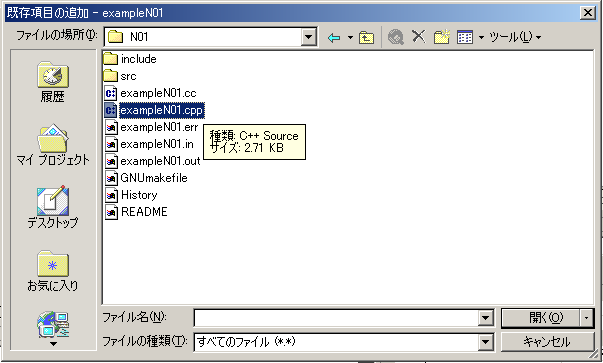

.cpp を持つソースファイルをプロジェクトに追加する）；

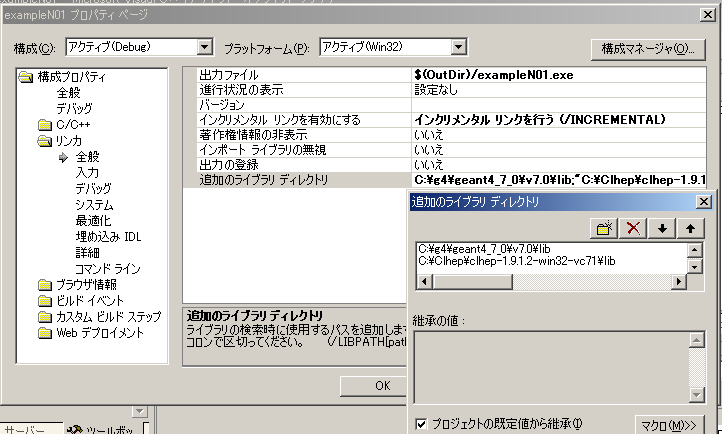

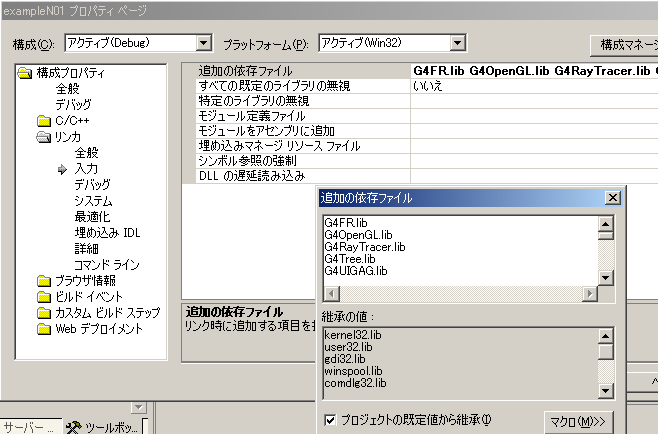

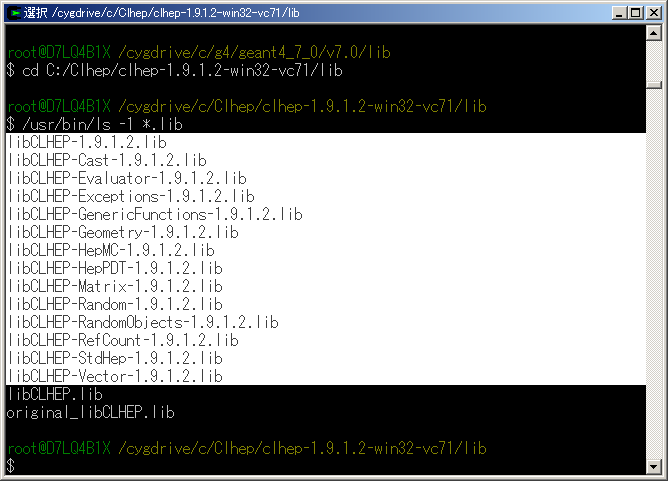

$ cd C:/g4/geant4_7_0/v7.0/lib $ /usr/bin/ls -1 G4FR.lib G4OpenGL.lib G4RayTracer.lib G4Tree.lib G4UIGAG.lib G4UIbasic.lib G4UIcommon.lib G4VRML.lib G4baryons.lib G4bosons.lib G4brep.lib G4csg.lib G4cuts.lib G4decay.lib G4detector.lib G4digits.lib G4emhighenergy.lib G4emlowenergy.lib G4emstandard.lib G4emutils.lib G4event.lib G4geomBoolean.lib G4geombias.lib G4geomdivision.lib G4geometrymng.lib G4gflash.lib G4globman.lib G4graphics_reps.lib G4had_im_r_matrix.lib G4had_mod_man.lib G4had_mod_util.lib G4had_muon_nuclear.lib G4had_neu_hp.lib G4had_preequ_exciton.lib G4had_string_diff.lib G4had_string_frag.lib G4had_string_man.lib G4had_theo_max.lib G4hadronic_HE.lib G4hadronic_LE.lib G4hadronic_ablation.lib G4hadronic_abrasion.lib G4hadronic_bert_cascade.lib G4hadronic_binary.lib G4hadronic_body_ci.lib G4hadronic_coherent_elastic.lib G4hadronic_deex_evaporation.lib G4hadronic_deex_fermi_breakup.lib G4hadronic_deex_fission.lib G4hadronic_deex_gem_evaporation.lib G4hadronic_deex_handler.lib G4hadronic_deex_management.lib G4hadronic_deex_multifragmentation.lib G4hadronic_deex_photon_evaporation.lib G4hadronic_deex_util.lib G4hadronic_em_dissociation.lib G4hadronic_hetcpp_evaporation.lib G4hadronic_hetcpp_utils.lib G4hadronic_interface_ci.lib G4hadronic_iso.lib G4hadronic_leading_particle.lib G4hadronic_mgt.lib G4hadronic_proc.lib G4hadronic_qgstring.lib G4hadronic_radioactivedecay.lib G4hadronic_stop.lib G4hadronic_util.lib G4hadronic_xsect.lib G4hepnumerics.lib G4hits.lib G4intercoms.lib G4ions.lib G4leptons.lib G4magneticfield.lib G4materials.lib G4mesons.lib G4modeling.lib G4muons.lib G4navigation.lib G4optical.lib G4parameterisation.lib G4partman.lib G4partutils.lib G4persistency.lib G4procman.lib G4readout.lib G4run.lib G4shortlived.lib G4specsolids.lib G4track.lib G4tracking.lib G4transportation.lib G4trdmodels.lib G4visHepRep.lib G4visXXX.lib G4vis_management.lib G4volumes.lib G4xrays.lib $ cd C:/Clhep/clhep-1.9.1.2-win32-vc71/lib $ /usr/bin/ls -1 *.lib libCLHEP-1.9.1.2.lib libCLHEP-Cast-1.9.1.2.lib libCLHEP-Evaluator-1.9.1.2.lib libCLHEP-Exceptions-1.9.1.2.lib libCLHEP-GenericFunctions-1.9.1.2.lib libCLHEP-Geometry-1.9.1.2.lib libCLHEP-HepMC-1.9.1.2.lib libCLHEP-HepPDT-1.9.1.2.lib libCLHEP-Matrix-1.9.1.2.lib libCLHEP-Random-1.9.1.2.lib libCLHEP-RandomObjects-1.9.1.2.lib libCLHEP-RefCount-1.9.1.2.lib libCLHEP-StdHep-1.9.1.2.lib libCLHEP-Vector-1.9.1.2.lib（注※：ないものやシンボリックリンクを指定してはいけない。 コピー時にシッポ切れに注意。）

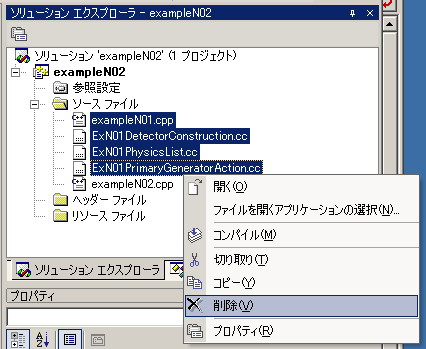

$ cd C:/g4/geant4_7_0/examples/novice/N02 $ cp exampleN02.cc exampleN02.cpp
ExN02ChamberParameterisation.cc ExN02DetectorConstruction.cc ExN02DetectorMessenger.cc ExN02EventAction.cc ExN02MagneticField.cc ExN02PhysicsList.cc ExN02PrimaryGeneratorAction.cc ExN02RunAction.cc ExN02SteppingAction.cc ExN02SteppingVerbose.cc ExN02TrackerHit.cc ExN02TrackerSD.cc ExN02VisManager.cc
$ pwd /cygdrive/c/pub/example/novice/N02/exampleN02 $ cp C:/g4/geant4_7_0/examples/novice/N02/vis.mac .
$ diff -u original_vis.mac vis.mac --- original_vis.mac 2005-04-25 19:13:06.046875000 +0900 +++ vis.mac 2005-04-25 19:13:30.796875000 +0900 @@ -14,9 +14,9 @@ # Create a scene handler for a specific graphics system # (Edit the next line(s) to choose another graphic system) # -/vis/open OGLIX +#Fut#/vis/open OGLIX # -####/vis/open DAWNFILE +/vis/open DAWNFILE # # draw scene #

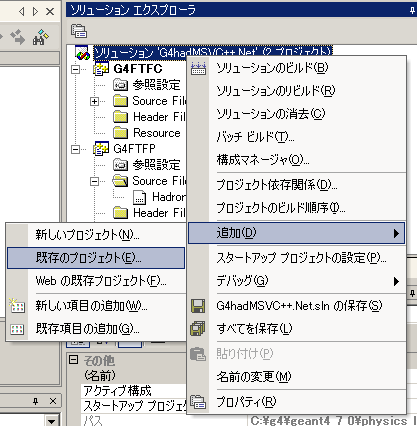

hadronic ／ plists ライブラリ」の構築。
$ unzip g4_7_0_projects.zip -d C:/g4/geant4_7_0/physics_lists/注※）深い階層のホルダだとバッチファイルが実行できない。（なぜ？）
バッチファイル：VC++Setup.bat⇒VC++Setup_had.bat ソリューションファイル：G4MSVC++.Net.sln⇒G4hadMSVC++.Net.sln
set G4INSTALL=F:\g4\geant4_7_0 ↓ set G4INSTALL=C:\g4\geant4_7_0 set CLHEP_BASE_DIR=C:\clhep\1.8.1.0 ↓ set CLHEP_BASE_DIR=C:\Clhep\clhep-1.9.1.2-win32-vc71 start devenv G4MSVC++.Net.sln ↓ start devenv G4hadMSVC++.Net.sln
projects フォルダ中にある
「＊.vcproj」プロジェクトファイルは、１つを残して消してしまってよい。
（但し、統合環境を起動する際には、以前の依存関係の登録が残っているので
１００位のエラーポップアップが出る。）
projects フォルダ中で、
１つ残した「＊.vcproj」プロジェクトファイルをコピーして、
必要なプロジェクトファイルを作成する。
ファイル名は「G4FTFC.vcproj」のようにすることにした。$ /usr/bin/ls C:/g4/geant4_7_0/physics_lists/hadronic/plists/include -1 CompileTimeConstraints.hh EMPhysics.hh EM_GNPhysics.hh FTFC.hh FTFC.icc FTFP.hh FTFP.icc G4BertiniNeutronBuilder.hh G4BertiniPiKBuilder.hh G4BertiniProtonBuilder.hh G4BinaryNeutronBuilder.hh G4BinaryPiKBuilder.hh G4BinaryProtonBuilder.hh G4DataQuestionaire.hh G4EMBuilder.hh G4EMTailorer.hh G4ElectroNuclearBuilder.hh G4FTFCNeutronBuilder.hh G4FTFCPiKBuilder.hh G4FTFCProtonBuilder.hh G4FTFPNeutronBuilder.hh G4FTFPPiKBuilder.hh G4FTFPProtonBuilder.hh G4HadronQEDBuilder.hh G4LEADNeutronBuilder.hh G4LEADPiKBuilder.hh G4LEADProtonBuilder.hh G4LEPNeutronBuilder.hh G4LEPPiKBuilder.hh G4LEPProtonBuilder.hh G4LHEPNeutronBuilder.hh G4LHEPPiKBuilder.hh G4LHEPProtonBuilder.hh G4MiscLHEPBuilder.hh G4NeutronBuilder.hh G4NeutronHPBuilder.hh G4PiKBuilder.hh G4PrecoNeutronBuilder.hh G4PrecoProtonBuilder.hh G4ProtonBuilder.hh G4QGSCNeutronBuilder.hh G4QGSCPiKBuilder.hh G4QGSCProtonBuilder.hh G4QGSPNeutronBuilder.hh G4QGSPPiKBuilder.hh G4QGSPProtonBuilder.hh G4StoppingHadronBuilder.hh G4VNeutronBuilder.hh G4VPiKBuilder.hh G4VProtonBuilder.hh GeneralPhysics.hh HadronPhysicsFTFC.hh HadronPhysicsFTFP.hh HadronPhysicsLHEP.hh HadronPhysicsLHEP_BERT.hh HadronPhysicsLHEP_BERT_HP.hh HadronPhysicsLHEP_BIC.hh HadronPhysicsLHEP_BIC_HP.hh HadronPhysicsLHEP_GN.hh HadronPhysicsLHEP_HP.hh HadronPhysicsLHEP_LEAD.hh HadronPhysicsLHEP_LEAD_HP.hh HadronPhysicsLHEP_PRECO.hh HadronPhysicsLHEP_PRECO_HP.hh HadronPhysicsQGSC.hh HadronPhysicsQGSC_LEAD.hh HadronPhysicsQGSC_LEAD_HP.hh HadronPhysicsQGSP.hh HadronPhysicsQGSP_BERT.hh HadronPhysicsQGSP_BIC.hh HadronPhysicsQGSP_HP.hh IonPhysics.hh LBE.hh LBE.icc LHEP.hh LHEP.icc LHEP_BERT.hh LHEP_BERT.icc LHEP_BERT_HP.hh LHEP_BERT_HP.icc LHEP_BIC.hh LHEP_BIC.icc LHEP_BIC_HP.hh LHEP_BIC_HP.icc LHEP_GN.hh LHEP_GN.icc LHEP_HP.hh LHEP_HP.icc LHEP_LEAD.hh LHEP_LEAD.icc LHEP_LEAD_HP.hh LHEP_LEAD_HP.icc LHEP_PRECO.hh LHEP_PRECO.icc LHEP_PRECO_HP.hh LHEP_PRECO_HP.icc MaxTimeCuts.hh MinEkineCuts.hh MuonPhysics.hh ParticleCodeMap.hh PortingDisclaimer.hh QGSC.hh QGSC.icc QGSC_LEAD.hh QGSC_LEAD.icc QGSC_LEAD_HP.hh QGSC_LEAD_HP.icc QGSP.hh QGSP.icc QGSP_BERT.hh QGSP_BERT.icc QGSP_BIC.hh QGSP_BIC.icc QGSP_GN.hh QGSP_GN.icc QGSP_HP.hh QGSP_HP.icc SpecialCuts.hh TheoModelFactory.hh plist.tmp注※）「
QGSP/include/HadronPhysicsQGSP.hh 」と
「 QGSP_GN/include/HadronPhysicsQGSP.hh 」は同じもの。
$G4INSTALL/include ディレクトリ
（C:/g4/geant4_7_0/include）に全部コピーしてしまう。（幸い重複ファイル名はないようだ。）
$ cp C:/g4/geant4_7_0/v7.0/projects/G4visXXX.vcproj G4LHEP_BIC.vcproj $ vi G4LHEP_BIC.vcproj :%s/visXXX/LHEP_BIC/gその後、IDEで『../lib』⇒“../../hadronic/plists/lib”及びソースファイル修正登録。

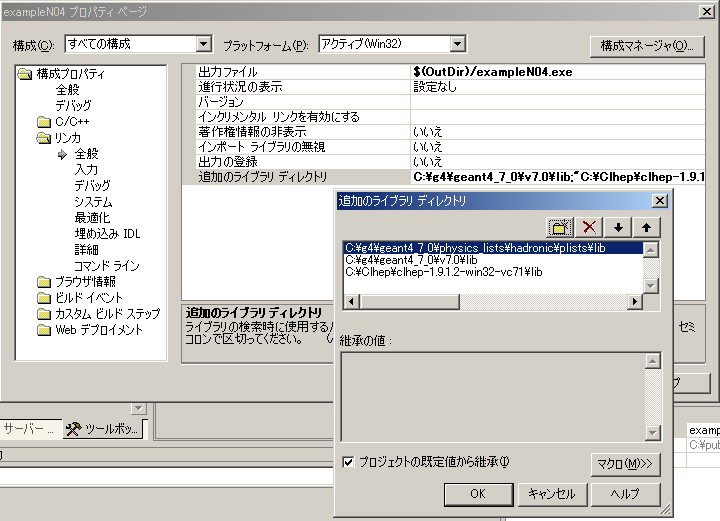

$ cd C:/g4/geant4_7_0/physics_lists/hadronic/plists/lib $ /usr/bin/ls -1 G4FTFC.lib G4FTFP.lib G4LBE.lib G4LHEP.lib G4LHEP_BERT.lib G4LHEP_BERT_HP.lib G4LHEP_BIC.lib G4LHEP_BIC_HP.lib G4LHEP_GN.lib G4LHEP_HP.lib G4LHEP_LEAD.lib G4LHEP_LEAD_HP.lib G4LHEP_PRECO.lib G4LHEP_PRECO_HP.lib G4Packaging.lib G4QGSC.lib G4QGSC_LEAD.lib G4QGSC_LEAD_HP.lib G4QGSP.lib G4QGSP_BERT.lib G4QGSP_BIC.lib G4QGSP_GN.lib G4QGSP_HP.lib
#include <iomanip.h>
↓
#include <iomanip>
#include <iostream.h>
↓
#include <iostream>

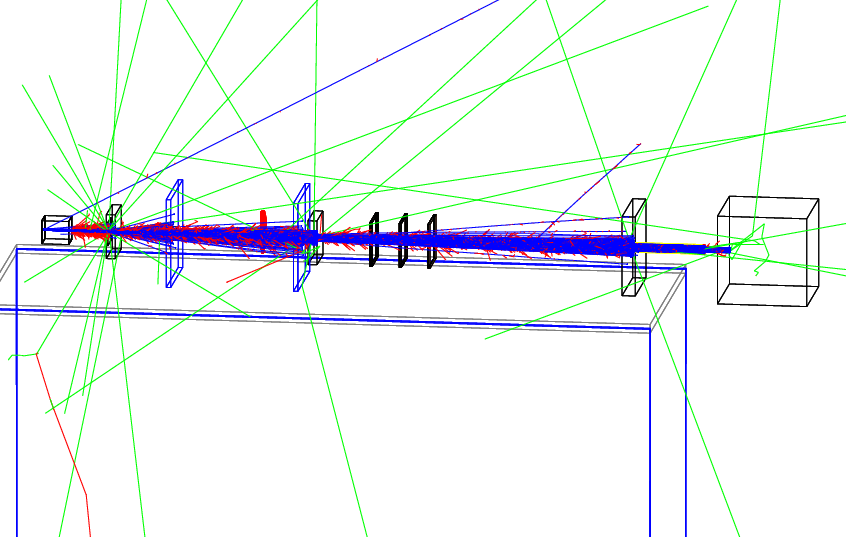

（「 Hadrontherapy.cpp 」の『 int main(int argc,char** argv) { 』行の前に次の行を追加）
#include <ctime>
前２者は複数のファイルに訂正が必要であるが、
ＩＤＥによるコンパイルエラーのレポートをダブルクリックすると
必要箇所にすばやく移動できる。
但し、実行ファイル終了時に
『…0x77f813b1 でハンドルされていない例外が発生しました…』
というエラーポップアップが出た。
（「free.c」の箇所に問題があるようだ。）
⇒ いろいろやったけど、細部に立ち入らない状態での環境整備はこのあたりが限界。 〔dawnが呼び出されるまで。但しgvは起動しない。また、vis関係手付かず。特にopenGL。〕 発展例題のハドロン治療までは動作させたしたので、… 最低限のバッラック作業はこの状態でやるか？
Microsoft Windows 2000 [Version 5.00.2195] (C) Copyright 1985-2000 Microsoft Corp. C:\Documents and Settings\Administrator>gsview32 C:\Documents and Settings\Administrator>gv 'gv' は、内部コマンドまたは外部コマンド、 操作可能なプログラムまたはバッチ ファイルとして認識されていません。コマンドプロンプトには認識されている“
gsview32”を使ってみる。
バッチファイル『exampleN06VC++Setup.bat』の要旨； set G4DAWNFILE_PS_VIEWER=gsview32 start devenv exampleN06.slnこれにより、初心者例題N06は、“DAWNFILEを使う方式において” ほぼ完全な形で動作させることが出来た。
G4DAWNFILE_PS_VIEWER」
のセットを強いること。
（あまりWindowsアプリケーションの習慣に馴染まない。
プロパティー設定などの仕掛けで吸収できるように設計を工夫すればいいのだろうが。）G4DAWNFILE_PS_VIEWER」を受け取って、
変数「fPSViewer」にセットしているのは、
“C:/g4/geant4_7_0/source/visualization/FukuiRenderer/src/G4DAWNFILEViewer.cc”
であることが分かる。
src/G4DAWNFILEViewer.cc:81:// strcpy( fPSViewer, "ghostview" );
src/G4DAWNFILEViewer.cc:82: strcpy( fPSViewer, "gv" );
src/G4DAWNFILEViewer.cc:83: if( getenv( "G4DAWNFILE_PS_VIEWER" ) != NULL ) {
src/G4DAWNFILEViewer.cc:84: strcpy( fPSViewer, getenv( "G4DAWNFILE_PS_VIEWER" ) ) ;
従って、８２行目をコメントアウトして、gvの替わりに、コマンドとして認識しているもの
を使って（例 strcpy( fPSViewer, "gsview32" );）、再コンパイルすれば、
自動起動はなされるようになると思われる。試してはいない。gv.bat」を置いてみる。
シンボリックリンクやショートカットの場合とは違って、
Geant4から起動がかかっているらしい感触を得た。
（アプリケーション実物gsview32.exeをそこへコピーしてgv.exeとリネームすると望む動作はするが、
これでは管理をしきれないと思う。）
問題は、バッチファイルの中身の書き方。文法など全く知らないので、検索して調査する。
コマンド名を書いただけでは、データが引き渡されないように感じる。引数が必要か。
gsview32 %1 %2と『%2』まで書いても無関係。『%2』は不要に思われる。 コマンド名に拡張子（.exe）をつけても大丈夫。 試しに、絶対パスの表記法を使ってみたところ大丈夫であった。 但し、パスを指定する文字列の中に空白が含まれてはいけなかった。 （従って、“パスの通っている”「C:\Program Files」のような場所は逆に絶対パス指定できなかった。） そこで…、 無限ループを避けるため、“gv.bat”の内容は
C:\futami\SW\picture\gvwin32\program\Ghostgum\gsview\gsview32.exe %1とした。 実行結果；
File g4_00.prim is generated.
dawn g4_00.prim
***************************************
Fukui Renderer
DAWN
(Drawer for Academic WritiNgs)
ver 3.85c-Win (VC++) June 01, 2002
***************************************
***** g4.prim viewer mode (default)
***** ("dawn -h" for help)
***** PostScript file "g4_00.eps" is created.
***** The showpage command is added.
#
# for drawing the tracks
# (if too many tracks caus
C:\pub\example\novice\N06\exampleN06\Debug>C:\futami\SW\picture\gvwin32\program\
Ghostgum\gsview\gsview32.exee core dump => sto g4_00.eps
reTrajectory 0)
#
/tracking/storeTrajectory 1
/vis/scene/endOfEventAction accumulate
Idle> run/beamOn 10
…
File g4_01.prim is generated.
dawn g4_01.prim
***************************************
Fukui Renderer
DAWN
(Drawer for Academic WritiNgs)
ver 3.85c-Win (VC++) June 01, 2002
***************************************
***** g4.prim viewer mode (default)
***** ("dawn -h" for help)
***** PostScript file "g4_01.eps" is created.
***** The showpage command is added.
Idle>
C:\pub\example\novice\N06\exampleN06\Debug>C:\futami\SW\picture\gvwin32\program\
Ghostgum\gsview\gsview32.exe g4_01.eps
C:\Program Files）へ
家元の指示通りインストールする。gv.bat を置く。
内容は次の通り。
@echo off C:\futami\SW\picture\gvwin32\program\Ghostgum\gsview\gsview32.exe %1なお、ｇ＋＋体系からは、実体のシンボリックリンクを
/usr/local/bin/gv へ置いておけばよい。以下未整理
Geant4 install directory』に置く。
（「C:\g4\geant4_7_0_p01」としておく。）
For the compilation under cygwin using VC 7.1 (Version 13.10.3077)
you have to make sure that the PATH contains the path to the
installation of Visual Studio .NET 2003, for example:
export VSPATH="/cygdrive/c/Program Files/Microsoft Visual Studio .NET 2003"
export PATH="/cygdrive/c/WINNT/Microsoft.NET/Framework/v1.1.4322":${PATH}
export PATH="${VSPATH}/SDK/v1.1/bin":${PATH}
export PATH="${VSPATH}/Common7/Tools/bin":${PATH}
export PATH="${VSPATH}/Common7/Tools/bin/prerelease":${PATH}
export PATH="${VSPATH}/Common7/Tools/":${PATH}
export PATH="${VSPATH}/Vc7/bin":${PATH}
export PATH="${VSPATH}/Common7/IDE":${PATH}
Before starting the build, you need to set up a
couple of environment variables as g++ (from
cygwin will otherwise be found and used):
export CPP='cl -E'
export CC='cl '
export CXXCPP='cl -E'
export CXX='cl '
export LD='cl '
The compiler also needs the following variables set up (and
as these are interpreted by the compiler, they have to be in
"windows-syntax"):
export INCLUDE="c:/Program Files/Microsoft Visual Studio .NET 2003/Vc7/include;C
:\Program Files\Microsoft Visual Studio .NET 2003\SDK\v1.1\include"
export LIB="c:/Program Files/Microsoft Visual Studio .NET 2003/Vc7/lib;C:\Progra
m Files\Microsoft Visual Studio .NET 2003\SDK\v1.1\Lib"
You may have to adapt to your installation path, if different.
As the compiler will complain about this, we also set:
export CXXFLAGS='-EHsc'
That's it ! And since you read until here, you can shorten
the whole procedure by doing (from the build directory,
assuming it can reach the source by ../CLHEP):
source ../CLHEP/setup.cygwin-VC71
Please report problems using the bug-tracker of the
savannah portal at:
http://savannah.cern.ch/projects/clhep
root@D7LQ4B1X ~/TMP/GEANT4/clhep/2.0.1.1/CLHEP
root@D7LQ4B1X ~/TMP/GEANT4/clhep/2.0.1.1/CLHEP
$ source ../CLHEP/setup.cygwin-VC71
root@D7LQ4B1X ~/TMP/GEANT4/clhep/2.0.1.1/CLHEP
$ ./configure
configure: error: invalid variable name: CC
configure: error: /bin/bash './configure' failed for Units
…（２はここまで。⇒だめだった）
☆以下；うまくいった！
（以下、１．９．１．２！）
同様に…
$ pwd
/home/Administrator/TMP/GEANT4/clhep
root@D7LQ4B1X ~/TMP/GEANT4/clhep
$ date
Thu Apr 7 15:52:46 2005
root@D7LQ4B1X ~/TMP/GEANT4/clhep
$ tar -zxvf clhep-1.9.1.2.tgz
root@D7LQ4B1X ~/TMP/GEANT4/clhep
$ cd 1.9.1.2/
root@D7LQ4B1X ~/TMP/GEANT4/clhep/1.9.1.2
$ cd CLHEP/
☆！！
root@D7LQ4B1X ~/TMP/GEANT4/clhep/1.9.1.2/CLHEP
$ export CLHEP_BASE_DIR="/usr/local"
root@D7LQ4B1X ~/TMP/GEANT4/clhep/1.9.1.2/CLHEP
$ printenv
HOMEPATH=\Documents and Settings\Administrator
MANPATH=/usr/local/mingw/man/:/usr/local/man:/usr/man:/usr/share/man:/usr/autoto
ol/devel/man::/usr/ssl/man:/usr/X11R6/man
APPDATA=C:\Documents and Settings\Administrator\Application Data
HOSTNAME=D7LQ4B1X
VS71COMNTOOLS=C:\Program Files\Microsoft Visual Studio .NET 2003\Common7\Tools\
TERM=cygwin
PROCESSOR_IDENTIFIER=x86 Family 15 Model 2 Stepping 9, GenuineIntel
WINDIR=C:\WINNT
LIBRARY_PATH=/myGTK/lib
TEXDOCVIEW_txt=cygstart %s
TEXDOCVIEW_dvi=cygstart %s
XYZZYHOME=C:\futami\SW\xyzzy
OLDPWD=/home/Administrator/TMP/GEANT4/clhep/1.9.1.2
USERDOMAIN=D7LQ4B1X
OS=Windows_NT
ALLUSERSPROFILE=C:\Documents and Settings\All Users
OS2LIBPATH=C:\WINNT\system32\os2\dll;
USER=root
!::=::\
TEMP=/cygdrive/c/DOCUME~1/ADMINI~1/LOCALS~1/Temp
COMMONPROGRAMFILES=C:\Program Files\Common Files
LIB=C:\Program Files\Microsoft Visual Studio .NET 2003\SDK\v1.1\Lib\
USERNAME=Administrator
TEXDOCVIEW_pdf=cygstart %s
PROCESSOR_LEVEL=15
PATH=/home/Administrator/USR/CMD:/home/Administrator/USR/BIN:/usr/lib/subversion
/bin:/usr/local/bin:/usr/bin:/bin:/usr/X11R6/bin:/cygdrive/c/Program Files/DAWN:
/myGTK/bin:/myGTK/lib:/cygdrive/c/futami/SW/picture/gvwin32/program/Ghostgum/gsv
iew:/cygdrive/c/futami/SW/picture/gswin32/program/gs/gs7.07/bin:/cygdrive/c/futa
mi/SW/script/tcltk/program/bin:/cygdrive/c/Program Files/Microsoft Visual Studio
.NET 2003/Vc7/bin:/cygdrive/c/WINNT/system32:/cygdrive/c/WINNT:/cygdrive/c/WINN
T/System32/Wbem:/cygdrive/c/Program Files/Common Files/Adaptec Shared/System:/cy
gdrive/c/Program Files/Common Files/Microsoft Shared/VSA/7.1/VsaEnv:/usr/bin:/cy
gdrive/c/futami/SW/php/program/php4Win32:/cygdrive/c/futami/SW/php/program/php4W
in32/dlls
PWD=/home/Administrator/TMP/GEANT4/clhep/1.9.1.2/CLHEP
SYSTEMDRIVE=C:
CYGWIN=server
CLHEP_BASE_DIR=/usr/local
LANG=ja_JP.SJIS
TEXDOCVIEW_html=cygstart %s
USERPROFILE=C:\Documents and Settings\Administrator
PS1=\[\033]0;\w\007
\033[32m\]\u@\h \[\033[33m\w\033[0m\]
$
LOGONSERVER=\\D7LQ4B1X
PROCESSOR_ARCHITECTURE=x86
!C:=C:\Cygwin\root\bin
MANPAGER=lv
GDK_CONV=/home/Administrator/.gtk
SHLVL=1
HOME=/home/Administrator
PATHEXT=.COM;.EXE;.BAT;.CMD;.VBS;.VBE;.JS;.JSE;.WSF;.WSH;.tcl
HOMEDRIVE=C:
LV=-Ks -Os -c
PROMPT=$P$G
COMSPEC=C:\WINNT\system32\cmd.exe
TMP=/cygdrive/c/DOCUME~1/ADMINI~1/LOCALS~1/Temp
SYSTEMROOT=C:\WINNT
CVS_RSH=/bin/ssh
PROCESSOR_REVISION=0209
PKG_CONFIG_PATH=/myGTK/lib/pkgconfig
MAKE_MODE=unix
TEXDOCVIEW_ps=cygstart %s
INFOPATH=/usr/local/info:/usr/info:/usr/share/info:/usr/autotool/devel/info:/usr
/autotool/stable/info:
PROGRAMFILES=C:\Program Files
TEXMF={/usr/share/lilypond/2.4.3,{!!/home/Administrator/.texmf/config,!!/home/Ad
ministrator/.texmf/var,/home/Administrator/texmf,!!/usr/share/texmf,!!/var/lib/t
exmf,!!/usr/share/texmf,!!/usr/local/share/texmf,!!/usr/share/texmf}}
NUMBER_OF_PROCESSORS=1
INCLUDE=C:\Program Files\Microsoft Visual Studio .NET 2003\SDK\v1.1\include\
COMPUTERNAME=D7LQ4B1X
_=/usr/bin/printenv
☆！！
root@D7LQ4B1X ~/TMP/GEANT4/clhep/1.9.1.2/CLHEP
$ source ../CLHEP/setup.cygwin-VC71
root@D7LQ4B1X ~/TMP/GEANT4/clhep/1.9.1.2/CLHEP
$ printenv
HOMEPATH=\Documents and Settings\Administrator
MANPATH=/usr/local/mingw/man/:/usr/local/man:/usr/man:/usr/share/man:/usr/autoto
ol/devel/man::/usr/ssl/man:/usr/X11R6/man
APPDATA=C:\Documents and Settings\Administrator\Application Data
CXXCPP=cl -E
HOSTNAME=D7LQ4B1X
VS71COMNTOOLS=C:\Program Files\Microsoft Visual Studio .NET 2003\Common7\Tools\
TERM=cygwin
PROCESSOR_IDENTIFIER=x86 Family 15 Model 2 Stepping 9, GenuineIntel
WINDIR=C:\WINNT
LIBRARY_PATH=/myGTK/lib
TEXDOCVIEW_txt=cygstart %s
TEXDOCVIEW_dvi=cygstart %s
XYZZYHOME=C:\futami\SW\xyzzy
OLDPWD=/home/Administrator/TMP/GEANT4/clhep/1.9.1.2
USERDOMAIN=D7LQ4B1X
OS=Windows_NT
ALLUSERSPROFILE=C:\Documents and Settings\All Users
OS2LIBPATH=C:\WINNT\system32\os2\dll;
USER=root
!::=::\
TEMP=/cygdrive/c/DOCUME~1/ADMINI~1/LOCALS~1/Temp
COMMONPROGRAMFILES=C:\Program Files\Common Files
LIB=c:/Program Files/Microsoft Visual Studio .NET 2003/Vc7/lib;C:\Program Files\
Microsoft Visual Studio .NET 2003\SDK\v1.1\Lib
CXXFLAGS=-EHsc
USERNAME=Administrator
CPP=cl -E
TEXDOCVIEW_pdf=cygstart %s
PROCESSOR_LEVEL=15
PATH=/cygdrive/c/Program Files/Microsoft Visual Studio .NET 2003/Common7/IDE:/cy
gdrive/c/Program Files/Microsoft Visual Studio .NET 2003/Vc7/bin:/cygdrive/c/Pro
gram Files/Microsoft Visual Studio .NET 2003/Common7/Tools/:/cygdrive/c/Program
Files/Microsoft Visual Studio .NET 2003/Common7/Tools/bin/prerelease:/cygdrive/c
/Program Files/Microsoft Visual Studio .NET 2003/Common7/Tools/bin:/cygdrive/c/P
rogram Files/Microsoft Visual Studio .NET 2003/SDK/v1.1/bin:/cygdrive/c/WINNT/Mi
crosoft.NET/Framework/v1.1.4322:/home/Administrator/USR/CMD:/home/Administrator/
USR/BIN:/usr/lib/subversion/bin:/usr/local/bin:/usr/bin:/bin:/usr/X11R6/bin:/cyg
drive/c/Program Files/DAWN:/myGTK/bin:/myGTK/lib:/cygdrive/c/futami/SW/picture/g
vwin32/program/Ghostgum/gsview:/cygdrive/c/futami/SW/picture/gswin32/program/gs/
gs7.07/bin:/cygdrive/c/futami/SW/script/tcltk/program/bin:/cygdrive/c/Program Fi
les/Microsoft Visual Studio .NET 2003/Vc7/bin:/cygdrive/c/WINNT/system32:/cygdri
ve/c/WINNT:/cygdrive/c/WINNT/System32/Wbem:/cygdrive/c/Program Files/Common File
s/Adaptec Shared/System:/cygdrive/c/Program Files/Common Files/Microsoft Shared/
VSA/7.1/VsaEnv:/usr/bin:/cygdrive/c/futami/SW/php/program/php4Win32:/cygdrive/c/
futami/SW/php/program/php4Win32/dlls
LD=cl
PWD=/home/Administrator/TMP/GEANT4/clhep/1.9.1.2/CLHEP
SYSTEMDRIVE=C:
CYGWIN=server
CLHEP_BASE_DIR=/usr/local
LANG=ja_JP.SJIS
TEXDOCVIEW_html=cygstart %s
USERPROFILE=C:\Documents and Settings\Administrator
PS1=\[\033]0;\w\007
\033[32m\]\u@\h \[\033[33m\w\033[0m\]
$
LOGONSERVER=\\D7LQ4B1X
PROCESSOR_ARCHITECTURE=x86
!C:=C:\Cygwin\root\bin
CXX=cl
VSPATH=/cygdrive/c/Program Files/Microsoft Visual Studio .NET 2003
MANPAGER=lv
GDK_CONV=/home/Administrator/.gtk
SHLVL=1
HOME=/home/Administrator
PATHEXT=.COM;.EXE;.BAT;.CMD;.VBS;.VBE;.JS;.JSE;.WSF;.WSH;.tcl
HOMEDRIVE=C:
LV=-Ks -Os -c
PROMPT=$P$G
COMSPEC=C:\WINNT\system32\cmd.exe
TMP=/cygdrive/c/DOCUME~1/ADMINI~1/LOCALS~1/Temp
SYSTEMROOT=C:\WINNT
CVS_RSH=/bin/ssh
PROCESSOR_REVISION=0209
PKG_CONFIG_PATH=/myGTK/lib/pkgconfig
MAKE_MODE=unix
TEXDOCVIEW_ps=cygstart %s
INFOPATH=/usr/local/info:/usr/info:/usr/share/info:/usr/autotool/devel/info:/usr
/autotool/stable/info:
PROGRAMFILES=C:\Program Files
CC=cl
TEXMF={/usr/share/lilypond/2.4.3,{!!/home/Administrator/.texmf/config,!!/home/Ad
ministrator/.texmf/var,/home/Administrator/texmf,!!/usr/share/texmf,!!/var/lib/t
exmf,!!/usr/share/texmf,!!/usr/local/share/texmf,!!/usr/share/texmf}}
NUMBER_OF_PROCESSORS=1
INCLUDE=c:/Program Files/Microsoft Visual Studio .NET 2003/Vc7/include;C:\Progra
m Files\Microsoft Visual Studio .NET 2003\SDK\v1.1\include
COMPUTERNAME=D7LQ4B1X
_=/usr/bin/printenv
☆！！
root@D7LQ4B1X ~/TMP/GEANT4/clhep/1.9.1.2/CLHEP
$ ./configure
☆！！いちいち、全部のサブディレクトリに降りてコンフィグしてまわらないといけない！！！！
$ cd Units/
$ ./configure
$ cd ..
$ make check
$ cd Matrix/
$ ./configure
$ cd ..
$ make check
$ cd Vector/
$ ./configure
$ cd ..
$ make check
$ cd Evaluator/
$ ./configure
$ cd ..
$ make check
$ cd GenericFunctions/
$ ./configure
$make check
$ cd Geometry/
$ ./configure
$ cd ../Cast/
$ ./configure
$ cd ../Exceptions/
$ ./configure
$ cd ../HepMC/
$ ./configure
$ cd ../HepPDT/
$ ./configure
$ cd ../Random
$ ./configure
$ cd ../RandomObjects/
$ ./configure
$ cd ../RefCount/
$ ./configure
$ cd ../StdHep/
$ ./configure
$ cd ..
☆！！！！今回はうまくいった。２もやりなおしてみるかな？
$ make check
make check-TESTS
make[3]: Entering directory `/home/Administrator/TMP/GEANT4/clhep/2.0.1.1/CLHEP/
HepPDT/test'
PASS: testPID.sh
--------------- HepPDT Version 1.01.00 ---------------
found 240 particles
FAIL: testHepPDT.sh
--------------- HepPDT Version 1.01.00 ---------------
QQDecayTable::readQQstream: found 387 particles and 342 decay definitions
PDGtoQQTable::buildTable: found 386 QQ to PDG particle translations
PASS: listQQTranslation.sh
PASS: listParticleNames.sh
PASS: listPythiaNames.sh
PASS: listPDGNames.sh
==============================
1 of 6 tests failed
Please report to CLHEP@cern.ch
==============================
make[3]: *** [check-TESTS] エラー 1
make[3]: Leaving directory `/home/Administrator/TMP/GEANT4/clhep/2.0.1.1/CLHEP/H
epPDT/test'
make[2]: *** [check-am] エラー 2
make[2]: Leaving directory `/home/Administrator/TMP/GEANT4/clhep/2.0.1.1/CLHEP/H
epPDT/test'
make[1]: *** [check-recursive] エラー 1
make[1]: Leaving directory `/home/Administrator/TMP/GEANT4/clhep/2.0.1.1/CLHEP/H
epPDT'
make: *** [check-recursive] エラー 1
root@D7LQ4B1X ~/TMP/GEANT4/clhep/1.9.1.2/CLHEP
$ export CLHEP_BASE_DIR="/usr/local"
root@D7LQ4B1X ~/TMP/GEANT4/clhep/1.9.1.2/CLHEP
$ date
Thu Apr 7 17:56:43 2005
root@D7LQ4B1X ~/TMP/GEANT4/clhep/1.9.1.2/CLHEP
$ source ../CLHEP/setup.cygwin-VC71
root@D7LQ4B1X ~/TMP/GEANT4/clhep/1.9.1.2/CLHEP
$ printenv
HOMEPATH=\Documents and Settings\Administrator
MANPATH=/usr/local/mingw/man/:/usr/local/man:/usr/man:/usr/share/man:/usr/autoto
ol/devel/man::/usr/ssl/man:/usr/X11R6/man
APPDATA=C:\Documents and Settings\Administrator\Application Data
CXXCPP=cl -E
HOSTNAME=D7LQ4B1X
VS71COMNTOOLS=C:\Program Files\Microsoft Visual Studio .NET 2003\Common7\Tools\
TERM=cygwin
PROCESSOR_IDENTIFIER=x86 Family 15 Model 2 Stepping 9, GenuineIntel
WINDIR=C:\WINNT
LIBRARY_PATH=/myGTK/lib
TEXDOCVIEW_txt=cygstart %s
TEXDOCVIEW_dvi=cygstart %s
XYZZYHOME=C:\futami\SW\xyzzy
OLDPWD=/home/Administrator/TMP/GEANT4/clhep/1.9.1.2
USERDOMAIN=D7LQ4B1X
OS=Windows_NT
ALLUSERSPROFILE=C:\Documents and Settings\All Users
OS2LIBPATH=C:\WINNT\system32\os2\dll;
USER=root
!::=::\
TEMP=/cygdrive/c/DOCUME~1/ADMINI~1/LOCALS~1/Temp
COMMONPROGRAMFILES=C:\Program Files\Common Files
LIB=c:/Program Files/Microsoft Visual Studio .NET 2003/Vc7/lib;C:\Program Files\
Microsoft Visual Studio .NET 2003\SDK\v1.1\Lib
CXXFLAGS=-EHsc
USERNAME=Administrator
CPP=cl -E
TEXDOCVIEW_pdf=cygstart %s
PROCESSOR_LEVEL=15
PATH=/cygdrive/c/Program Files/Microsoft Visual Studio .NET 2003/Common7/IDE:/cy
gdrive/c/Program Files/Microsoft Visual Studio .NET 2003/Vc7/bin:/cygdrive/c/Pro
gram Files/Microsoft Visual Studio .NET 2003/Common7/Tools/:/cygdrive/c/Program
Files/Microsoft Visual Studio .NET 2003/Common7/Tools/bin/prerelease:/cygdrive/c
/Program Files/Microsoft Visual Studio .NET 2003/Common7/Tools/bin:/cygdrive/c/P
rogram Files/Microsoft Visual Studio .NET 2003/SDK/v1.1/bin:/cygdrive/c/WINNT/Mi
crosoft.NET/Framework/v1.1.4322:/home/Administrator/USR/CMD:/home/Administrator/
USR/BIN:/usr/lib/subversion/bin:/usr/local/bin:/usr/bin:/bin:/usr/X11R6/bin:/cyg
drive/c/Program Files/DAWN:/myGTK/bin:/myGTK/lib:/cygdrive/c/futami/SW/picture/g
vwin32/program/Ghostgum/gsview:/cygdrive/c/futami/SW/picture/gswin32/program/gs/
gs7.07/bin:/cygdrive/c/futami/SW/script/tcltk/program/bin:/cygdrive/c/Program Fi
les/Microsoft Visual Studio .NET 2003/Vc7/bin:/cygdrive/c/WINNT/system32:/cygdri
ve/c/WINNT:/cygdrive/c/WINNT/System32/Wbem:/cygdrive/c/Program Files/Common File
s/Adaptec Shared/System:/cygdrive/c/Program Files/Common Files/Microsoft Shared/
VSA/7.1/VsaEnv:/usr/bin:/cygdrive/c/futami/SW/php/program/php4Win32:/cygdrive/c/
futami/SW/php/program/php4Win32/dlls
LD=cl
PWD=/home/Administrator/TMP/GEANT4/clhep/1.9.1.2/CLHEP
SYSTEMDRIVE=C:
CYGWIN=server
CLHEP_BASE_DIR=/usr/local
LANG=ja_JP.SJIS
TEXDOCVIEW_html=cygstart %s
USERPROFILE=C:\Documents and Settings\Administrator
PS1=\[\033]0;\w\007
\033[32m\]\u@\h \[\033[33m\w\033[0m\]
$
LOGONSERVER=\\D7LQ4B1X
PROCESSOR_ARCHITECTURE=x86
!C:=C:\Cygwin\root\bin
CXX=cl
VSPATH=/cygdrive/c/Program Files/Microsoft Visual Studio .NET 2003
MANPAGER=lv
GDK_CONV=/home/Administrator/.gtk
SHLVL=1
HOME=/home/Administrator
PATHEXT=.COM;.EXE;.BAT;.CMD;.VBS;.VBE;.JS;.JSE;.WSF;.WSH;.tcl
HOMEDRIVE=C:
LV=-Ks -Os -c
PROMPT=$P$G
COMSPEC=C:\WINNT\system32\cmd.exe
TMP=/cygdrive/c/DOCUME~1/ADMINI~1/LOCALS~1/Temp
SYSTEMROOT=C:\WINNT
CVS_RSH=/bin/ssh
PROCESSOR_REVISION=0209
PKG_CONFIG_PATH=/myGTK/lib/pkgconfig
MAKE_MODE=unix
TEXDOCVIEW_ps=cygstart %s
INFOPATH=/usr/local/info:/usr/info:/usr/share/info:/usr/autotool/devel/info:/usr
/autotool/stable/info:
PROGRAMFILES=C:\Program Files
CC=cl
TEXMF={/usr/share/lilypond/2.4.3,{!!/home/Administrator/.texmf/config,!!/home/Ad
ministrator/.texmf/var,/home/Administrator/texmf,!!/usr/share/texmf,!!/var/lib/t
exmf,!!/usr/share/texmf,!!/usr/local/share/texmf,!!/usr/share/texmf}}
NUMBER_OF_PROCESSORS=1
INCLUDE=c:/Program Files/Microsoft Visual Studio .NET 2003/Vc7/include;C:\Progra
m Files\Microsoft Visual Studio .NET 2003\SDK\v1.1\include
COMPUTERNAME=D7LQ4B1X
_=/usr/bin/printenv
root@D7LQ4B1X ~/TMP/GEANT4/clhep/1.9.1.2/CLHEP
$ ./configure
configure: running /bin/bash './configure' --prefix=/usr/local 'CC=cl ' 'CPP=cl
-E' 'CXXCPP=cl -E' 'CXXFLAGS=-EHsc' 'CXX=cl ' --cache-file=/dev/null --srcdir=.
configure: error: invalid variable name: CC
configure: error: /bin/bash './configure' failed for config
creating libCLHEP-1.9.1.2.la
(cd .libs && rm -f libCLHEP-1.9.1.2.la && ln -s ../libCLHEP-1.9.1.2.la libCLHEP-
1.9.1.2.la)
make[1]: Leaving directory `/home/Administrator/TMP/GEANT4/clhep/1.9.1.2/CLHEP'
root@D7LQ4B1X ~/TMP/GEANT4/clhep/1.9.1.2/CLHEP
$ date
Thu Apr 7 19:55:28 2005
$ make install
test -z "/usr/local/bin" || mkdir -p -- "/usr/local/bin"
/usr/bin/install -c 'clheplib' '/usr/local/bin/clheplib'
/usr/bin/install -c 'clhep-config' '/usr/local/bin/clhep-config'
/home/Administrator/TMP/GEANT4/clhep/1.9.1.2/CLHEP/install-sh -d /usr/local/lib
/bin/bash ./libtool --mode=install libCLHEP-1.9.1.2.la /usr/local/lib/libCLHE
P-1.9.1.2.la
/usr/bin/install -c .libs/libCLHEP-1.9.1.2.lai /usr/local/lib/libCLHEP-1.9.1.2.l
a
/usr/bin/install -c .libs/libCLHEP-1.9.1.2.lib /usr/local/lib/libCLHEP-1.9.1.2.l
ib
ranlib /usr/local/lib/libCLHEP-1.9.1.2.lib
chmod 644 /usr/local/lib/libCLHEP-1.9.1.2.lib
----------------------------------------------------------------------
Libraries have been installed in:
/usr/local/lib
If you ever happen to want to link against installed libraries
in a given directory, LIBDIR, you must either use libtool, and
specify the full pathname of the library, or use the `-LLIBDIR'
flag during linking and do at least one of the following:
- add LIBDIR to the `PATH' environment variable
during execution
- use the ` ' linker flag
See any operating system documentation about shared libraries for
more information, such as the ld(1) and ld.so(8) manual pages.
----------------------------------------------------------------------
以上、うまくいった１。９。１。２でした。（うまく動作するかは知らん）
２の再トライ。
$ pwd
/home/Administrator/TMP/GEANT4/clhep
$ tar -zxvf clhep-2.0.1.1.tgz
$ cd 2.0.1.1/CLHEP/
/home/Administrator/TMP/GEANT4/clhep/2.0.1.1/CLHEP
$ ls
./ HepPDT/ Units/ configure*
../ INSTALL* Utilities/ configure.in*
.cvsignore* Makefile.am* Vector/ getObjectList*
CVS/ Makefile.in aclocal.m4 install-sh*
Cast/ Matrix/ autom4te.cache/ ltmain.sh*
ChangeLog* README* bootstrap* makeBinaryTar.in*
Evaluator/ Random/ build-clheplib.in* makeSourceDist.in*
Exceptions/ RandomObjects/ clhep-config.in* missing*
GenericFunctions/ ReadMe.cygwin-VC71* compilers.txt* nohup.out
Geometry/ RefCount/ config.guess* setup.cygwin-VC71*
HepMC/ StdHep/ config.sub*
$ date
Mon Apr 11 10:08:20 2005
やっぱりダメ。HepPDTの６つある１つめのテストで落ちる。あきらめるしかない。
clhep-2.0.1.1-win32-vc71
は予めmkdirしておかねばならない。
$ tar -zxvf clhep-2.0.1.1-win32-vc71.tgz -C /cygdrive/c/Clhep/clhep-2.0.1.1-win32-vc71
Geant4本体。
しょがないね。まず所定の方法でインストールしてみるか。
$ pwd
/home/Administrator/TMP/GEANT4/system
$ tar -zxvf geant4.7.0.p01.tar.gz
$ cd geant4.7.0.p01
root@D7LQ4B1X ~/TMP/GEANT4/system/geant4.7.0.p01
$ tar cf - . | (cd ~/geant470p01; tar vxf -)
$ cd ..
$ rm -rf geant4.7.0.p01
$ pwd
/home/Administrator/geant470p01
root@D7LQ4B1X ~/geant470p01
$ date
Mon Apr 11 13:45:58 2005
$ alias gmake='make --makefile=GNUmakefile'
$ ./Configure -build | tee log200504111349.txt
1) OS : WIN32
【☆！！！！】2) Compiler : VC⇒g++
Do you expect to run these scripts and binaries on multiple machines? [n]
Where is Geant4 source installed?
EOM [/home/Administrator/geant470p01]
Specify the path where Geant4 libraries and source files should be
installed.
EOM
[/home/Administrator/geant470p01]
Do you want to copy all Geant4 headers
in one directory?
EOM [n] y⇒n
Please, specify directories where the Geant4 data is installed:
1) G4LEVELGAMMADATA: /home/Administrator/geant470p01/data/PhotonEvapo
ration
2) G4RADIOACTIVEDATA: /home/Administrator/geant470p01/data/RadiativeDe
cay
3) G4LEDATA: /home/Administrator/geant470p01/data/G4EMLOW2.3
4) NeutronHPCrossSections: /home/Administrator/geant470p01/data/G4NDL3.7
5) G4ELASTICDATA: /home/Administrator/geant470p01/data/Elastic
Could not find CLHEP installed on this system!
Please, specify where CLHEP is installed (set by default):
CLHEP_BASE_DIR: c:/usr/local
According to it will be set:
CLHEP_INCLUDE_DIR
CLHEP_LIB_DIR
You will be asked about customizing these next.
EOM
[c:/usr/local] /usr/local
You can customize paths and library name of you CLHEP installation:
1) CLHEP_INCLUDE_DIR: /usr/local/include
2) CLHEP_LIB_DIR: /usr/local/lib
3) CLHEP_LIB: CLHEP
You need to use full library name with its extension (e.g. libCLHEP.lib).
To modify default settings, select number above (e.g. 2)
EOM
[Press [Enter] for default settings]
By default 'static' libraries are built.
Do you want to build DLL (.dll) libraries?
EOM
[n] y⇒n
⇒Do you want to build 'global' compound libraries?
⇒EOM [n]
Do you want to compile libraries in DEBUG mode (-g)?
EOM [n]
If this variable is set, no UI sessions nor any UI libraries are built.
This can be useful when running a pure batch job or in a user framework
having its own UI system.
Do you want to set this variable ?
EOM
[n]
G4UI_BUILD_WIN32_SESSION
G4UI_USE_WIN32
Specifies to include and use the terminal interface for
Windows systems.
EOM
[n] y⇒n
「以下VCの場合…
G4VIS_NONE
If this variable is set, no visualization drivers will be built or used.
Do you want to set this variable ?
EOM
[n]
G4VIS_BUILD_OPENGLWIN32_DRIVER
G4VIS_USE_OPENGLWIN32
It is an interface to the de facto standard 3D graphics library,
OpenGL. It is well suited for real-time fast visualization
and prototyping. The Windows version of the OpenGL libraries is
required.
EOM
[n]
G4VIS_BUILD_OIWIN32_DRIVER
G4VIS_USE_OIWIN32
Specifies to build and use the driver for the free X11 version of
OpenInventor on Windows systems.
The Windows version of OpenInventor is required.
EOM
[n]
…以上、VCの場合」
「以下、g++の場合…
G4UI_BUILD_XAW_SESSION
G4UI_USE_XAW
Specifies to include and use the XAW interfaces in the
application to be built.
The XAW (X11 Athena Widget set) extensions are required to activate
and build this driver.
EOM
[n]
G4UI_BUILD_XM_SESSION
G4UI_USE_XM
Specifies to include and use the XM Motif based user interfaces.
The XM Motif extensions are required to activate and build this
driver.
EOM
[n]
G4VIS_NONE
If this variable is set, no visualization drivers will be built or used.
Do you want to set this variable ?
EOM
[n]
G4VIS_BUILD_OPENGLX_DRIVER
G4VIS_USE_OPENGLX
It is an interface to the de facto standard 3D graphics library,
OpenGL. It is well suited for real-time fast visualization
and prototyping. The X11 version of the OpenGL libraries is
required.
EOM
[n]
G4VIS_BUILD_OPENGLXM_DRIVER
G4VIS_USE_OPENGLXM
It is an interface to the de facto standard 3D graphics library,
OpenGL. It is well suited for real-time fast visualization
and prototyping. The X11 version of the OpenGL libraries and
the Motif Xm extension is required.
EOM
[n]
G4VIS_BUILD_DAWN_DRIVER
G4VIS_USE_DAWN
DAWN drivers are interfaces to the Fukui Renderer DAWN. DAWN is
a vectorized 3D PostScript processor suited to prepare technical
high quality outputs for presentation and/or documentation.
EOM
[n]
G4VIS_BUILD_OIX_DRIVER
G4VIS_USE_OIX
The OpenInventor driver is based on OpenInventor technology
for scientific visualizarion.
The X11 version of OpenInventor is required.
EOM
[n]
It is an interface to the de facto standard 3D graphics library,
OpenGL. It is well suited for real-time fast visualization
and prototyping. The X11 version of the OpenGL libraries and
the Motif Xm extension is required.
These driver generate VRML files, which describe 3D scenes to be
visualized with a proper VRML viewer.
EOM
[n]
G4LIB_BUILD_G3TOG4 ript processor suited to prepare technical
If this variable is set, it will be built G3TOG4 module.
Do you want to set this variable ?
EOM
[n]
G4ANALYSIS_USEisualizarion.
Activates the configuration setup for allowing plugins to
analysis tools based on AIDA (Astract Interfaces for Data
Analysis). In order to use AIDA features and compliant analysis
tools, the proper environment for these tools will have to be
set (see documentation for the specific analysis tools).
EOM
[n]
…以上、g++の場合」
G4LIB_BUILD_G3TOG4
If this variable is set, it will be built G3TOG4 module.
Do you want to set this variable ?
EOM
[n]
G4ANALYSIS_USE
Activates the configuration setup for allowing plugins to
analysis tools based on AIDA (Astract Interfaces for Data
Analysis). In order to use AIDA features and compliant analysis
tools, the proper environment for these tools will have to be
set (see documentation for the specific analysis tools).
EOM
[n]
End of configuration phase.
Creating configuration setup file...
WARNING: the generated configuration file
can be edited if necessary!
You can introduce any change to the configuration file
/home/Administrator/geant470p01/.config/bin/WIN32-VC/config.sh before the final
installation.
To do so, use a shell escape now (e.g. !vi /home/Administrator/geant470p01/.conf
ig/bin/WIN32-VC/config.sh).
Press [Enter] to start installation or use a shell escape to edit config.sh:
$ ./Configure -build | tee log200504111604.txt
☆！！！！ＷＩＮ３２−ｇ＋＋では成功。（判定文も書き直さなくてもＯＫ）
root@D7LQ4B1X ~/geant470p01
$ ./Configure -install | tee log200504120756.txt;date
On this machine the G4SYSTEM=WIN32-VC
On this machine the G4INSTALL=/home/Administrator/geant470p01
On this machine the G4INCLUDE=/home/Administrator/geant470p01/include
On this machine the G4TMP=/home/Administrator/geant470p01/tmp
On this machine the G4LIB=/home/Administrator/geant470p01/lib
On this machine the G4LEVELGAMMADATA=/home/Administrator/geant470p01/data/Photon
Evaporation
On this machine the G4RADIOACTIVEDATA=/home/Administrator/geant470p01/data/Radia
tiveDecay
On this machine the G4LEDATA=/home/Administrator/geant470p01/data/G4EMLOW2.3
On this machine the NeutronHPCrossSections=/home/Administrator/geant470p01/data/
G4NDL3.7
On this machine the G4ELASTICDATA=/home/Administrator/geant470p01/data/Elastic
On this machine the CLHEP_BASE_DIR=/usr/local
On this machine the CLHEP_INCLUDE_DIR=/usr/local/include
On this machine the CLHEP_LIB_DIR=/usr/local/lib
On this machine the CLHEP_LIB=CLHEP
On this machine the G4UI_BUILD_WIN32_SESSION=1
On this machine the G4UI_USE_WIN32=1
On this machine the G4LIB_BUILD_STATIC=1
On this machine the G4LIB_USE_GRANULAR=1
Starting installation...
Installing headers...
Installing includes files in /home/Administrator/geant470p01/include ...
Tue Apr 12 08:02:21 2005
root@D7LQ4B1X ~/geant470p01
今度はコンパイラだけＶＣにしてみる。
⇒だめ。

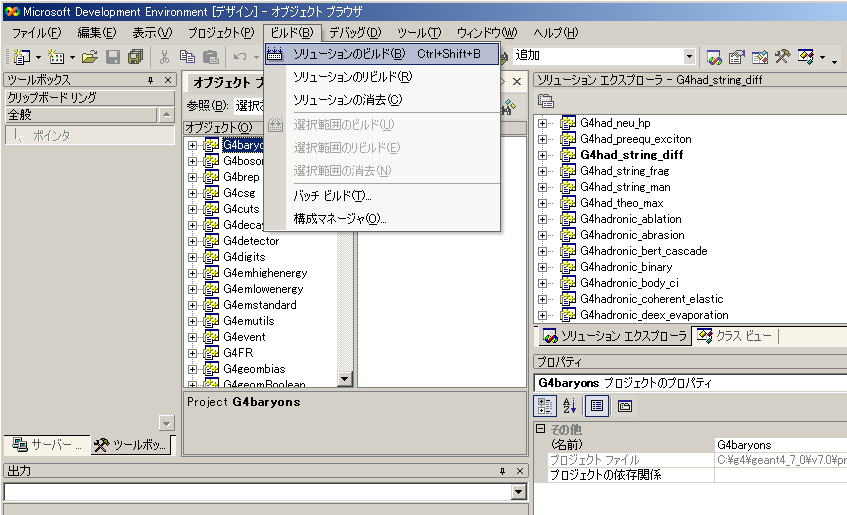

で、プロジェクトファイルを用いるが、
インストール先の指定が、「c:/…」でないとうまくリンクしない。
結局、
『VC++Setup.bat』は、
「
REM Setup for defining the necessary environmental variables
REM for Geant4 development on an Windows machine with VC++.NET
REM Define the OS and Compiler
set G4SYSTEM=WIN32-VC
REM set G4INSTALL=F:\g4\geant4_7_0
set G4INSTALL=C:\g4\geant4_7_0_p01
set G4LIB=%G4INSTALL%\lib\%G4SYSTEM%
set G4TMP=%G4INSTALL%\tmp
set G4BIN=%G4INSTALL%\bin
set G4WORKDIR=%G4INSTALL%\work
set G4_INCLUDES=%G4INSTALL%\include
set G4_LIB=%G4INSTALL%\lib\%G4SYSTEM%
REM CLHEP installation
REM set CLHEP_BASE_DIR=C:\clhep\1.8.1.0
REM set CLHEP_BASE_DIR=C:\Clhep\clhep-2.0.1.1-win32-vc71
set CLHEP_BASE_DIR=C:\Clhep\clhep-1.9.1.2-win32-vc71
set CLHEP_INCLUDE=%CLHEP_BASE_DIR%\include
set CLHEP_LIB=%CLHEP_BASE_DIR%\lib
start devenv G4MSVC++.Net.sln
」
とした。Clhepはバイナリ配布の1.9の最新のやつ。（２ではダメ）

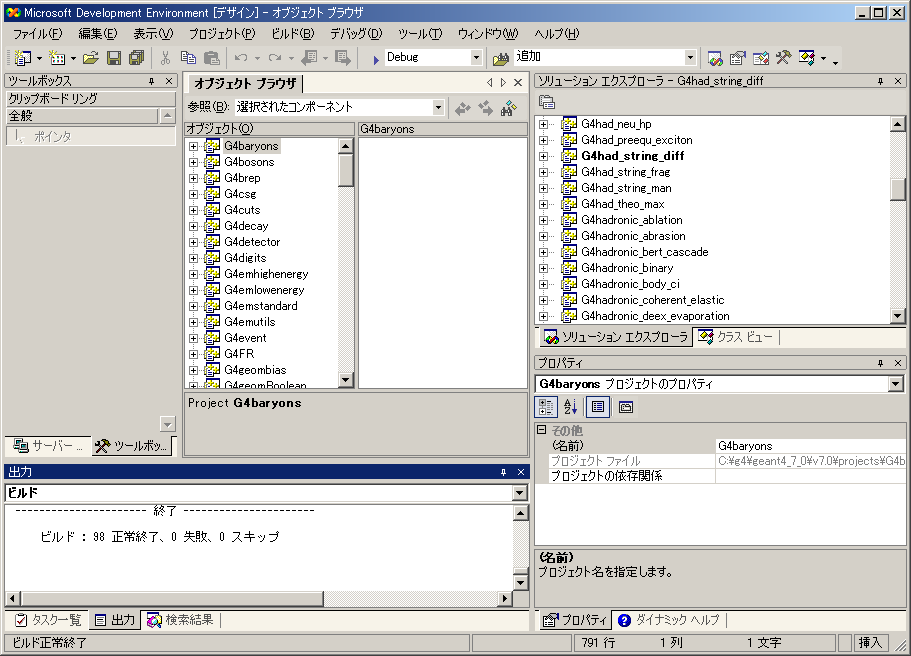

ビルドには３時間強かかった。
コマンドラインから再挑戦したが、これもうまくいった。
これまでとの違いは、clhepの指定を1.9の最新のやつにしたことと、
その保存先をC:ドライブレターからの指定にしたこと、
そこにはプリコンパイル配布版のライブラリを配したことなど。
◎以上まとめると…
・ｇ＋＋コンパイラを使うことに関しては、特に問題はなかった。
・ｃｌｈｅｐの２．０はうまくいっていない。１．９を使うのが良い。
・ＶＣコンパイラを使う際には、パス・ディレクトリの指定は、
ドライブレターをＷｉｎｄｏｗｓ形式で表現しなければならない
ことがあった。その際、ｃｌｈｅｐはプリコンパイル配布版を用いる
のが手軽だ。
（設定例：「 CLHEP_BASE_DIR="C:/Clhep/clhep-1.9.1.2-win32-vc71" 」）
・ビルドに成功した組み合わせ。
１）~/geant470p01ディレクトリにて ./Configure を実行し、g++選択。
システムのインストールは「 ~/geant470p01 」。
g4install='/home/Administrator/geant470p01'
g4clhep_base_dir='/usr/local'

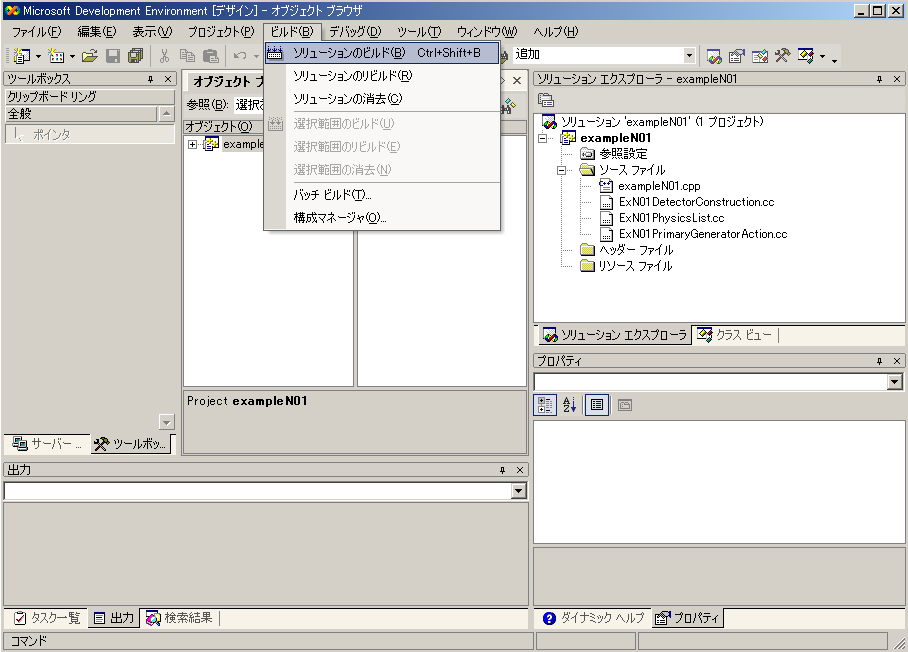

２）VC++Setup.batを使ってMicrosoft Visual C++ .NETを起動。
システムのインストールは「 C:\g4\geant4_7_0_p01 」。
set G4INSTALL=C:\g4\geant4_7_0_p01
set CLHEP_BASE_DIR=C:\Clhep\clhep-1.9.1.2-win32-vc71
３）C:/g4/geant4_7_0_p01/sourceディレクトリにて、
「$ source geant4-setup.sh」、「$ source vsvars7.sh」、「$ make」実行。
システムのインストールは「 C:/g4/geant4_7_0_p01 」。
G4INSTALL="C:/g4/geant4_7_0_p01"
CLHEP_BASE_DIR="C:/Clhep/clhep-1.9.1.2-win32-vc71"
４）C:/g4/geant4_7_0_p01/sourceディレクトリにて、
「$ source geant4-setup.sh」、「$ source vsvars7.sh」実行の後、
C:/g4/geant4_7_0_p01ディレクトリにて、 ./Configure を実行し、VC選択。
システムのインストールは「 C:/g4/geant4_7_0_p01 」。
g4install='C:/g4/geant4_7_0_p01'
g4clhep_base_dir='C:/Clhep/clhep-1.9.1.2-win32-vc71'
…⇒要は、ｃｌｈｅｐは１．９を使えということやね（あと、Ｃ：表現）。
なお、４）で、残念ながら「．ＤＬＬ作成」は失敗した。
$ ./Configure -build | tee log200504131235.txt; date
$ ./Configure -install | tee log200504140802.txt; date
ＤＡＷＮについて
http://geant4.kek.jp/~tanaka/DAWN/About_DAWN.html
<< How to compile DAWN in Windows XP/2000/NT/98/Me >>
(0) Install Visual C++ 6.0, and set the PATH environmental variable to
its "bin" directory, e.g.
"C:\Program Files\Microsoft Visual Studio\VC98\Bin".
(For Windows XP/2000/NT, use control panel (system).
For Windows 98/Me, add a proper description for the PATH variable
to "c:\autoexec.bat".)
⇒
$ printenv PATH
/home/Administrator/USR/CMD:/home/Administrator/USR/BIN:/usr/lib/subversion/bin:
/usr/local/bin:/usr/bin:/bin:/usr/X11R6/bin:/cygdrive/c/Program Files/DAWN:/myGT
K/bin:/myGTK/lib:/cygdrive/c/futami/SW/picture/gvwin32/program/Ghostgum/gsview:/
cygdrive/c/futami/SW/picture/gswin32/program/gs/gs7.07/bin:/cygdrive/c/futami/SW
/script/tcltk/program/bin:/cygdrive/c/Program Files/Microsoft Visual Studio .NET
2003/Vc7/bin:/cygdrive/c/WINNT/system32:/cygdrive/c/WINNT:/cygdrive/c/WINNT/Sys
tem32/Wbem:/cygdrive/c/Program Files/Common Files/Adaptec Shared/System:/cygdriv
e/c/Program Files/Common Files/Microsoft Shared/VSA/7.1/VsaEnv:/usr/bin:/cygdriv
e/c/futami/SW/php/program/php4Win32:/cygdrive/c/futami/SW/php/program/php4Win32/
dlls
の
“/cygdrive/c/Program Files/Microsoft Visual Studio .NET 2003/Vc7/bin:”や、
“/cygdrive/c/Program Files/Common Files/Microsoft Shared/VSA/7.1/VsaEnv:”か。
(1) Install Tcl/Tk for Windows /XP/2000/NT/98/Me.
Check if the window shell name is "wish.exe".
(You can obtain Tcl/Tk from the following site:
http://dev.scriptics.com/software/tcltk )
⇒
$ which wish.exe
/usr/bin/wish.exe
(2) Install your favorite PostScript viewer.
We recommend to install Gsview, which also needs Ghostscript,
(You can obtain GSview and Ghostscript from the following site:
http://www.cs.wisc.edu/~ghost/index.html )
⇒
$ which gv
/usr/local/bin/gv
$ man gv
gv(1) gv(1)
Name
gv - a PostScript and PDF previewer
Synopsis
gv [ filename ]
[-monochrome] [-grayscale] [-color]
[-[no]safer] [-[no]quiet] [-arguments ]
[-page
